The CT500PC spring tester is a Programmable Compression / Extension Servo Driven Spring Tester with a built in PC and a touch Screen Monitor. This Tester is constructed with a C Frame design and exhibits the following characteristics:

  • Extension and Compression Modes
  • Load capacity: 500N
  • Minimum resolution: 0.01N
  • Accuracy: ±0.0125N at 2.5N and better than ±2.5N at 10N. (ISO 7500/1 Class 0.5)
  • Standard Stroke 500mm
  • HS (high Speed/High Resolution) technology
  • Stroke linear resolution: 0.00025mm
  • Stroke Accuracy better than ±0.01mm
  • Platten Diameter: Ø80mm
  • you can download the full data sheet here

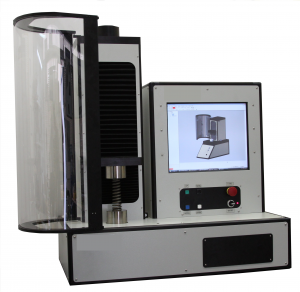

CT500PC 500N capacity Spring Tester with built in PC and Touchscreen
