CT200DualXXX

(XXX Denotes Secondary Loadcell Capacity in Newtons)

The CT-200DualXXX spring tester is Dual Loadcell Tester with a C-Frame design. It is a servo driven, PC operated model that connects externally to a PC via USB and Serial ports. It has the following main characteristics:

  • Extension and Compression Modes for both Loadcells
  • Primary Load capacity: 200N
  • Primary Loadcell Minimum load resolution: 0.004N
  • Primary Loadcell Accuracy: ±0.005N at 1N and better than ±1N at 200N. (ISO 7500/1 Class 0.5)
  • Stroke linear resolution: 0.00025mm
  • Stroke Accuracy better than ±0.01mm.
  • Standard Stroke 500mm. 1000mm Stroke available as an option
  • Primary Loadcell Platten Diameter: Ø80mm
  • Maximum linear Speed: 125mm/sec
  • Optional Secondary Loadcells: 10N, 50N, 100N, 200N
  • Seconary Loadcell Platten Diameter: Ø55mm
  • You can download the full data sheet here

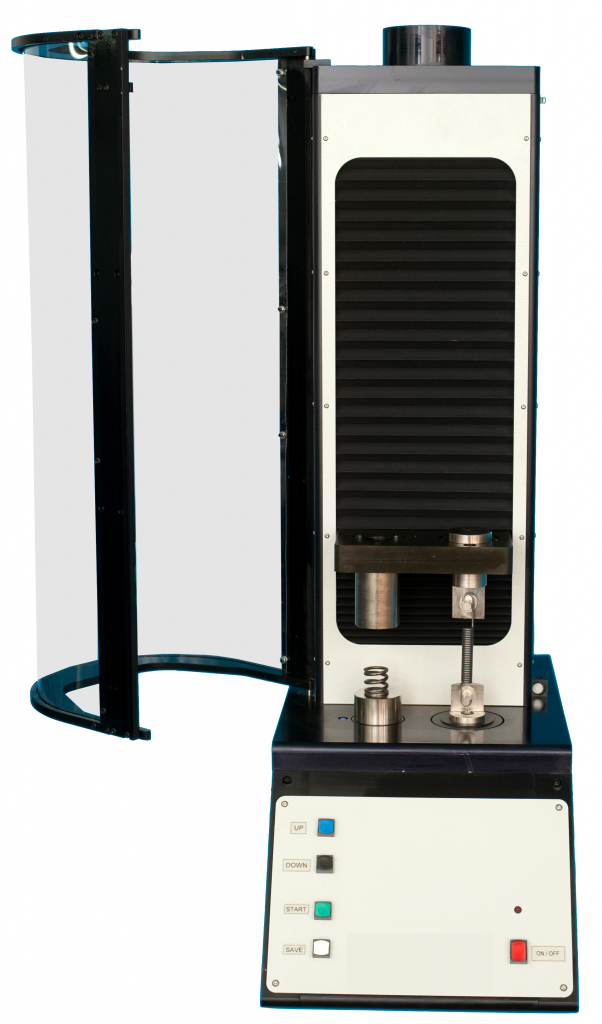

CT200DualXXX Dual Loadcell, High Speed/High Resolution, Compression/Extension Spring Tester

Table below describes the specification of the available secondary loadcells
