CT Series (C Frame) Compression & Extension Spring Testers

The CT Series are Programmable Compression / Extension Servo Driven Spring Testers. This Family of Testers is constructed with a C Frame design and exhibit the following characteristics

Maximum Load Capacity between 10N up to 20000N

200mm, 500mm and 1000mm Strokes Available

Excellent R&R Performance

SPC Control Charts, Analysis and Reports

CT Series meet and exceed the following Standards: ISO 7500/1 Class 0.5 and ASTM E4

The CT Series is available in the following Configurations:

CT-Series (C-Frame) standard
CTHS Series (C-Frame) , High Speed/ High Resolution model
CT-Dual Series, C-Frame, Dual Loadcell High Speed/High Resolution
CTPC Series, C-Frame, High Speed/High Resolution Tester with Built in PC and Touch Screen display
CTPC-Dual Series, C-Frame Dual Loadcell High Speed/High Resolution Compression/Extension Tester with Built in PC and Touch Screen display

CT-Series (C-Frame) Standard compression / extension Testers

This configuration includes a C-Frame structure, servo driven PC controlled tester that is connected via a USB cable to an external PC
Maximum Load Capacity between 10N up to 2000N
200mm standard stroke, 500mm and 1000mm strokes also available
Most economic option available for a servo driven, pc controlled spring tester

CT Series Standard spring tester” class= — **CT-Series (C-Frame) Standard Testers**

CTHS Series (C-Frame) High Speed/High Resolution compression / extension Testers

This configuration includes a C-Frame structure, servo driven PC controlled tester that is connected via a USB and serial cables to an external PC
Maximum Load Capacity between 10N up to 10000N
500mm standard stroke, 1000mm stroke also available
Speed 10X the standard C-Frame model, Position resolution 3X the standard C-Frame model
LVA module available option with all CTHS Series Testers of Capacity 500N (CT500HS) and larger

CT HS Series Spring Testers — CT HS Series (C-Frame) Testers

CT-Dual Series, C-Frame, Dual Loadcell Compression/Extension Testers

This configuration includes a Dual Loadcell Tester with a C-Frame structure, that is servo driven, PC controlled and is connected via USB and serial cables to an external PC
For Primary Loadcell: Maximum Load Capacity between 100N up to 10.000N Available
For Secondary Loadcell: Maximum Load Capacity between 10N up to 500N Available
500mm and 1000mm Strokes Available
Both loadcells are fixed to the tester and there is no need to calibrate or reset the height datum when changing from one loadcell to another
The active loadcell is automatically recognized
HS Technology (High Speed/High Resolution) Included

CT2000 Dual Spring Tester — **CT Series Dual Spring Tester**

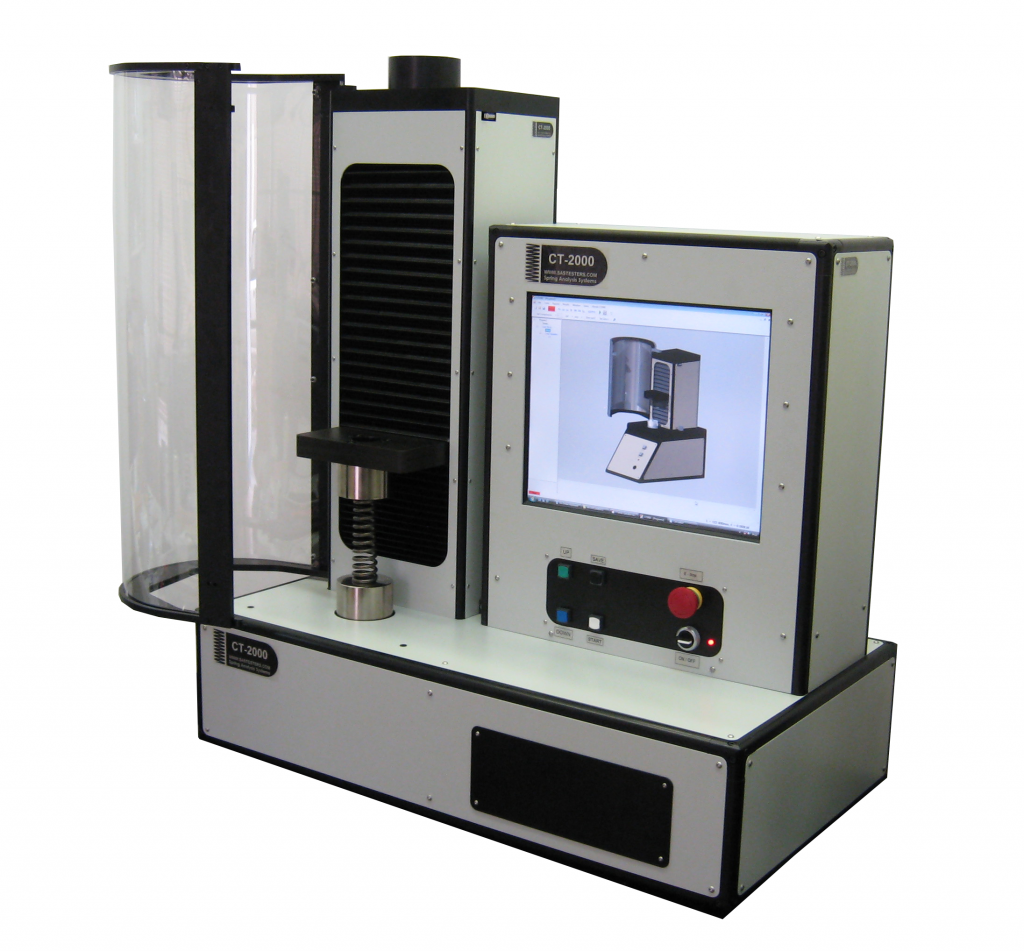

CTPC Series, C-Frame Compression/Extension Tester with Built in PC and Touch Screen display

This configuration include a C-Frame structure, servo driven PC controlled tester with a built in PC and touch Screen Display
Maximum Load Capacity between 10N up to 10.000N
500mm and 1000mm Strokes Available
HS Technology (High Speed/High Resolution) Included
LVA module available option with all CTPC Series Testers of Capacity 500N (CT500PC) and larger

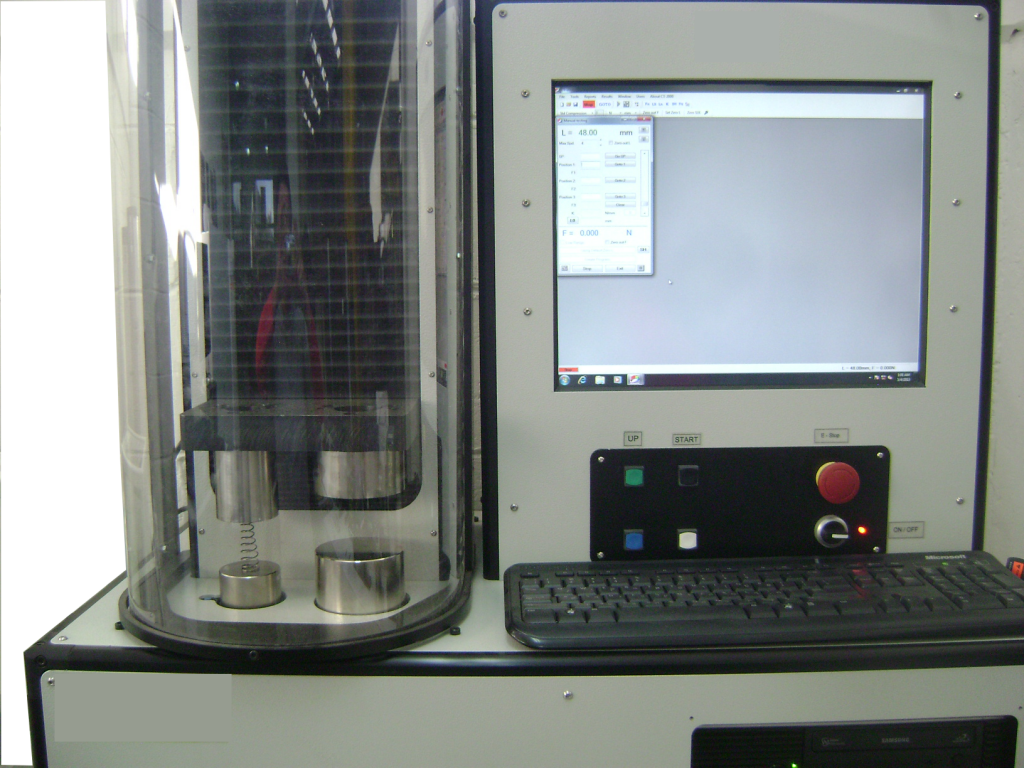

CTPC-Dual Series, C-Frame Dual Loadcell Compression/Extension Tester with Built in PC and Touch Screen display

This configuration include a C-Frame structure, servo driven PC controlled tester with a built in PC and touch Screen Display
For Primary Loadcell Maximum Load Capacity between 100N up to 10.000N Available
For Secondary Loadcell Maximum Load Capacity between 10N up to 500N Available
500mm and 1000mm Strokes Available
HS Technology (High Speed/High Resolution) Included

Here you can see a video of a CT-Series Dual Tester

Table 1 describes the specifications of the various models in this family
