CT100HS High Speed Spring Tester

The CT100HS spring tester is a C-Frame servo driven, PC operated model that connects externally to a PC via USB and Serial ports. It has the following main characteristics:

  • Extension and Compression Modes
  • Load capacity: 100N
  • Minimum load resolution: 0.002N
  • Accuracy: ±0.0025N at 0.5N and better than ±0.5N at 100N. (ISO 7500/1 Class 0.5)
  • Stroke linear resolution: 0.00025mm
  • Stroke Accuracy better than ±0.01mm.
  • Standard Stroke 500mm. 1000mm Stroke available as an option
  • Platten Diameter: Ø55mm
  • Maximum linear Speed: 125mm/sec
  • You can download the full data sheet here

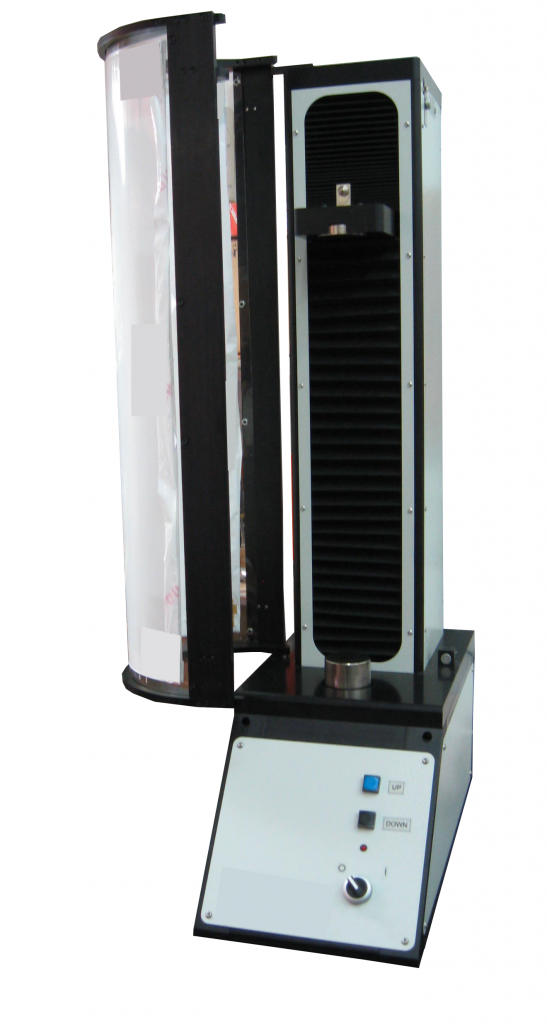

CT100HS 100N Capacity, high Speed/High Resolution spring Tester
CT100HS 100N Capacity High Speed/High Resolution, Compression/Extension Spring Tester
